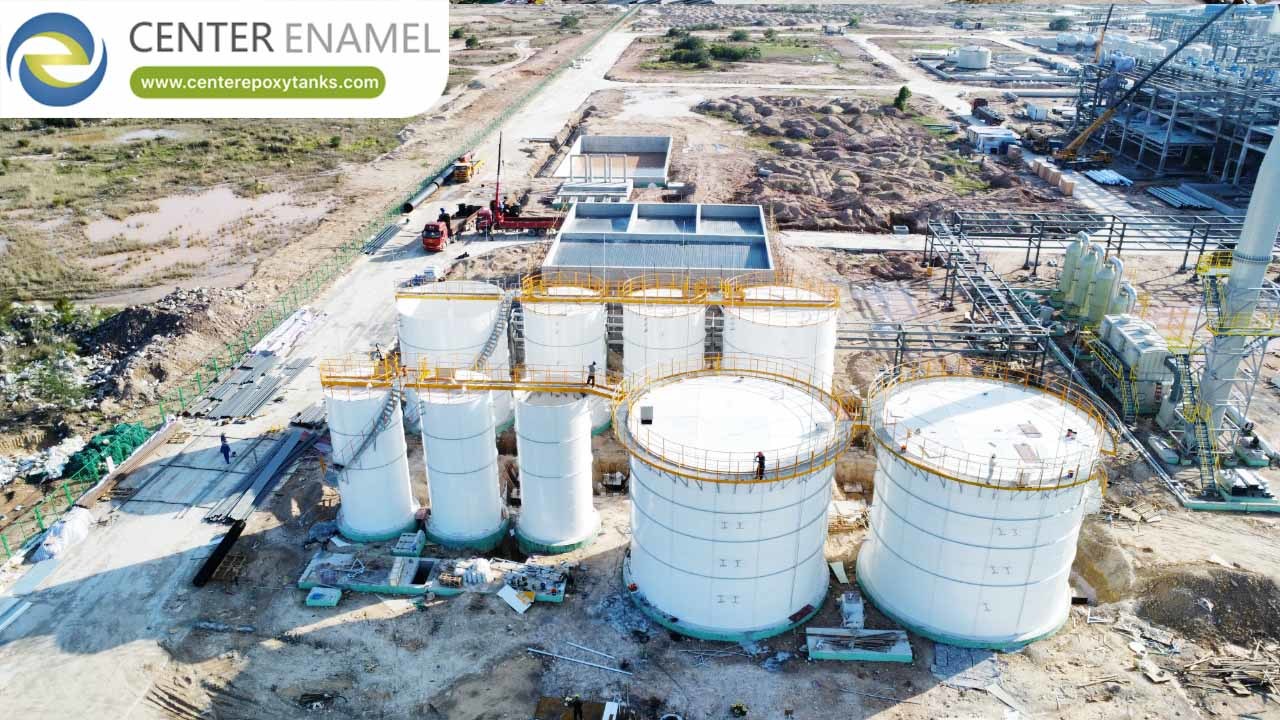

FBE Cooking Oil Collection Tank: Technical Authority Guide

The global shift toward sustainable aviation fuel (SAF) and renewable diesel has turned Used Cooking Oil (UCO) into a high-value industrial asset. However, collecting and storing UCO presents a unique engineering challenge: the high concentration of Free Fatty Acids (FFA) and moisture. Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) offers the definitive solution with the Fusion Bonded Epoxy (FBE) cooking oil collection tank, engineered to withstand the aggressive chemical profile of waste fats and oils.

1. The Chemistry of UCO Containment: Why FBE?

Used cooking oil is not chemically neutral. As oils degrade, they produce FFAs and volatile organic compounds that create a corrosive environment.

• Acid Value (AV) Protection: UCO often exhibits high acidity. Unlike concrete, which suffers from alkaline etching, or welded carbon steel, which is prone to pitting, FBE provides an inert, molecularly fused barrier.
•
• Oxidation Prevention: FBE tanks are designed as sealed, light-blocking vessels. This prevents UV-induced oxidation, preserving the oil's quality for biofuel processing.

2. Technical Specifications: FBE vs. Industry Standards

Center Enamel’s FBE tanks utilize an electrostatic "powder-on-powder" coating system that ensures a holiday-free surface. This is critical for oily media where even microscopic discontinuities can lead to sub-film corrosion.

Core Performance Matrix

3. Strategic Comparison: FBE vs. Concrete vs. Stainless Steel

For 2026 procurement strategies, the Total Cost of Ownership (TCO) is the primary metric. Below is a comparative analysis of UCO storage options.

4. Key Benefits for Biofuel & UCO Operators

• Modular "Kit" Delivery: Prefabricated panels can be shipped globally and assembled in remote locations or tight urban spaces where welding is prohibited.
• Superior Cleanability: The smooth FBE surface prevents the buildup of "gunk" and mold, making the tank compatible with high-pressure steam cleaning and Standard Cleaning-in-Place (CIP) protocols.
• Edge Protection: Unlike liquid-painted tanks, Center Enamel’s FBE process provides 100% wrap-around coverage on panel edges and bolt holes, eliminating the primary failure points of oil storage.
•

5. Compliance & Structural Standards

To ensure project bankability and environmental safety, our FBE cooking oil collection tanks adhere to:

• AWWA D103-19: The global benchmark for factory-coated bolted steel storage.
• ISO 28765:2016: Standards for coating integrity in industrial vessels.
• ASCE 7-22: Structural engineering for high wind and seismic load resilience.

6. Frequently Asked Questions (FAQ)

Q: Can FBE tanks handle high-temperature oils?

A: FBE is designed for storage at ambient temperatures. If the oil is collected directly from industrial fryers at high heat, a cooling stage is recommended to maintain the coating's 30-year design life.

Q: Is FBE suitable for food-grade (fresh) cooking oil?

A: Yes. Center Enamel’s FBE coatings are compliant with NSF/ANSI 61 and BS 6920, ensuring no VOC leaching into edible products.
