Setting the Global Standard in Storage: The Glass-Fused-to-Steel (GFS) Silo Tank

Szczegóły produktu
Miejsce pochodzenia: Chiny
Nazwa handlowa: CEC TANKS
Orzecznictwo: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Numer modelu: W
Warunki płatności i wysyłki
Minimalne zamówienie: 1set
Cena: $5000~$20000 one set
Szczegóły pakowania: Pe poli-foam między każdą dwiema stalowymi płytkami; drewniana paleta i drewniana
Czas dostawy: 10-30 dni po otrzymaniu depozytu
Zasady płatności: L/C, T/T.
Możliwość Supply: 60 zestawów miesięcznie

Szczegółowe informacje

Miejsce pochodzenia Chiny Nazwa handlowa CEC TANKS
Orzecznictwo ISO 9001:2008, AWWA D103 , OSHA , BSCI Numer modelu W
Fundacja: Stal betonowa lub tapion Grubość płytek stalowych: 3 mm do 12 mm, zależy od konstrukcji zbiornika
Dostępny dach: Szklany dach stalowy, dach membranowy, aluminiowy dach, dach GRP Łatwy do czyszczenia: Gładkie, błyszczące, obojętne, antyadhezji
Funkcja: Przyjazna dla środowiska, trwałość Dostępne: 20 m3 do 18 000 m3
Podkreślić:

Glass Fused to Steel silo tank

,

GFS storage tank with warranty

,

global standard steel silo tank

Opis produktu

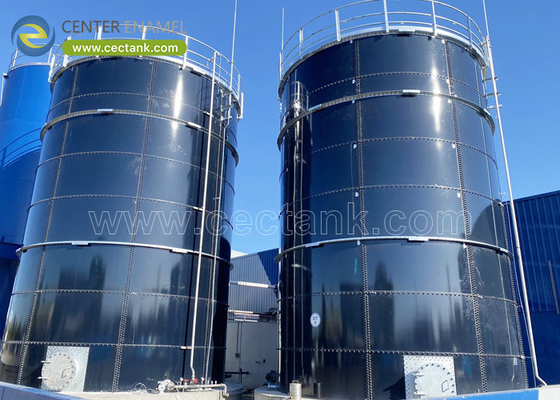

Setting the Global Standard in Storage: The Glass-Fused-to-Steel (GFS) Silo Tank



In a modern world facing increasingly complex and critical storage challenges, from securing a safe water supply to managing industrial waste, the choice of storage solution is more than just a logistical decision—it’s a long-term investment in safety, sustainability, and efficiency. For decades, Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) has stood at the forefront of this industry, pioneering the development and manufacturing of bolted storage tanks. Our flagship product, the Glass-Fused-to-Steel (GFS) silo tank, represents the pinnacle of this expertise, offering an unrivaled combination of durability, versatility, and cost-effectiveness.



As a leading storage tank manufacturer worldwide. Center Enamel can provide Glass Lined Steel(GLS) tanks, fusion bonded epoxy tanks, stainless steel tanks, galvanized steel tanks and aluminum geodesic dome roofs, Wastewater and Biogas Project Equipments for global customers.



Configuration of Customized Storage Tanks
Storage tanks Volume Roofs Application Design Requirements

GLS Tanks

SS Tanks

Fusion Bonded Epoxy Tanks

Galvanized Steel Tanks

Welded Steel Tanks

<1000m³

1000-10000m³

10000-20000m³

20000-25000m³

>25000m³

ADR Roof

GLS Roof

Membrane Roof

FRP Roof

Trough Deck Roof

Wastewater Treatment Project

Drinking Water Project

Municipal Sewage Project

Biogas Project

Fire Water Storage Project

Oil Storage Project

Water Supply & Drainage System

Seismic Design

Wind Resistant Design

Lightning Protection Design

Tank Insulation Design





WasteWater Treatment Project Equipment Supply

Pretreatment Equipment Resource Utilization System Sludge Treatment System Other Equipment

Mechanical Bar Screen

Solid-liquid Separator

Submersible Mixer

Gas Holder

Boiler System

Boost Fan

Bio

gas Generator

Torch System

Dehydration and Desulfurization Tank

PAM Integration Dosing Device

Screw Sludge Dewatering Machine

Slurry Separation Centrifuge

Sewage Pump

Mud Scraper

Submersible Sewage Pump

Three-phases Separator

The Unbreakable Bond: A Deep Dive into GFS Technology

At its heart, a GFS silo tank is an engineering marvel born from a meticulous fusion process. Unlike conventional coatings that merely sit on the surface of steel, GFS technology involves a high-temperature firing process at 820°C-930°C. During this process, a special glass enamel is molten and chemically bonds with the surface of a high-strength, titanium-rich steel plate. The result is a single, integrated material that harnesses the best attributes of both components: the tensile strength and structural integrity of steel, and the extraordinary chemical and physical resilience of glass.



This fusion creates an inert, non-porous, and inorganic bond, which is the foundation of the GFS tank’s superior performance. The glass, when it cools, is placed under compression by the contracting steel, making it remarkably resistant to impact and abrasion—a unique characteristic that sets it apart from traditional glass. This isn't just a coating; it's a permanent, monolithic layer of protection.



Unparalleled Advantages: Why GFS Tanks Outperform the Rest

In the competitive landscape of storage solutions, GFS tanks stand head and shoulders above alternatives like concrete, stainless steel, or fusion bonded epoxy tanks. The key differentiators lie in the long-term value they provide.



1. Superior Corrosion and Chemical Resistance: The vitreous enamel coating is impervious to a wide range of corrosive materials, from strong acids and alkalis (with a standard pH resistance of 3-11 and a special coating for 1-14) to industrial effluents and landfill leachate. This exceptional resistance prevents rust and degradation, ensuring a service life of over 30 years with virtually no maintenance. In contrast, concrete tanks can crack, leading to leaks and reinforcement corrosion, while welded steel tanks require constant repainting and protection against rust.



2. Low Maintenance and Operational Costs: The GFS tank's smooth, non-porous surface is resistant to adhesion, making it easy to clean and maintain. There is no need for frequent repainting, re-lining, or extensive repairs that are common with other tank types. This minimal maintenance requirement translates into significant savings in operational costs and reduces downtime, ensuring uninterrupted service.



3. Rapid and Cost-Effective Installation: Our modular bolted design allows for fast, on-site assembly without the need for heavy-duty cranes or specialized welding equipment. The pre-fabricated panels are engineered for a perfect fit, significantly shortening construction periods. This streamlined process reduces labor costs and project timelines, making GFS tanks a more economically viable solution, especially in remote or challenging locations. In contrast, constructing concrete tanks is a time-consuming and labor-intensive process, while large-scale welded tanks require a highly skilled workforce and can be susceptible to weather delays during on-site welding.



4. Durability and Impact Resistance: The permanent fusion bond, combined with a hardness of 6.0 Mohs, provides excellent impact and wear resistance. This makes GFS tanks an ideal choice for storing abrasive materials such as grains, minerals, and other dry bulk solids without the risk of coating damage. The material’s ability to withstand external pressures and physical wear ensures the tank's structural integrity is maintained over its long lifespan.



5. Hygienic and Safe for Critical Applications: The inert, non-toxic nature of the glass coating prevents the growth of bacteria, fungi, and algae. Our GFS tanks are certified to NSF/ANSI 61 standards, making them the safest and most reliable choice for storing potable drinking water. This certification guarantees that the tank will not leach any harmful substances into the water, protecting public health and safety.



Global Applications: A Solution for Every Challenge

The versatility and robust performance of Center Enamel's GFS tanks have made them a go-to solution for a wide array of applications across the globe.



Water and Wastewater Management: From municipal water supply systems and emergency fire water storage to industrial wastewater treatment and anaerobic digestion tanks for biogas production, GFS tanks are a staple. Their superior corrosion resistance is particularly critical in handling aggressive media like landfill leachate and municipal sewage.



Bio-Energy and Biogas Projects: GFS tanks are a crucial component of modern bio-energy plants. They serve as reliable, gas-tight anaerobic digesters, where organic waste is converted into biogas. The inert nature of the glass lining protects the steel from the corrosive effects of hydrogen sulfide and other byproducts of the digestion process.



Dry Bulk Storage: The smooth, anti-adhesion surface and high wear resistance make GFS tanks perfect for storing dry bulk materials like grains, corn, feed, cement, and minerals. They protect the contents from moisture, pests, and spoilage, ensuring the integrity and quality of the stored material.



Agriculture: In agriculture, GFS tanks are used for storing irrigation water, animal feed, and fertilizers, providing a durable and reliable solution that can withstand the rigors of farm life.



Certifications and Proven Excellence: A Commitment to Quality

Shijiazhuang Zhengzhong Technology Co., Ltd. is not just a manufacturer; we are a standard-bearer for quality and innovation. As the first manufacturer in China to produce GFS tanks, we have dedicated ourselves to continuous improvement and adherence to the most rigorous international standards. Our tanks are designed, manufactured, and tested in strict accordance with:



AWWA D103-09: The American Water Works Association standard for factory-coated bolted steel water storage tanks.



ISO 28765: The international standard for vitreous and porcelain enamels in bolted steel tanks.



NSF/ANSI 61: A critical standard for products used in drinking water systems.



EN1090: A European standard for structural steel and aluminum components.



WRAS and FM: Certifications that further validate the product’s quality and suitability for specific applications.



Our commitment to quality is backed by more than 20 enameling patents and a vast portfolio of successful projects in over 100 countries, including the Costa Rica Drinking Water Project and the Malaysia POME Biogas Project. These case studies prove the reliability and superior performance of our tanks in real-world scenarios.



A Global Partnership for a Sustainable Future

The choice of a storage solution should be made with a vision for the future. The GFS silo tank by Shijiazhuang Zhengzhong Technology Co., Ltd. offers a compelling combination of minimal maintenance, long service life, and cost-effective installation, making it a more sustainable and economically sound option over its entire lifecycle.



As a global marketing writer for Center Enamel, I can confidently state that we are not just selling tanks; we are providing comprehensive storage solutions. We offer a range of accessories, including manholes, flanges, and maintenance ladders, and provide EPC technical support to ensure your project is a success from start to finish. Our commitment to innovation, quality, and customer service is unwavering. We sincerely invite local partners from around the world to join us in building a more reliable and sustainable future, one tank at a time.
